Stainless Steel Truncated Dome With Crosshatch Pattern [TWSI]

Product Specification

Top of Studs :

Crosshatch  Diamonds Top with Truncated edges

Suitable for Substrates :

Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals

Fixing :

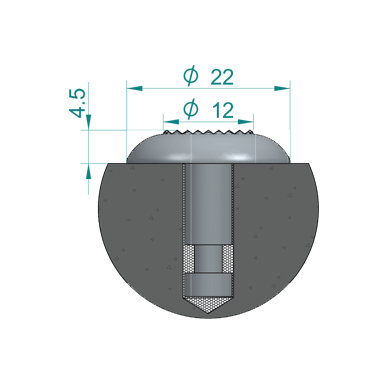

Drill and fit with adhesive or diamond core and fit with adhesive

Special Options :

Customized sizes available on request, Thickness Can be availed
between 4.5 to 5mm as per request*

Australian Standards AS/NZS 1428.4.1:2009. | National Building Code 2016 (India)

5-Year Warranty

Elevate safety and style with our Stainless Steel Truncated Dome with Crosshatch Pattern [TWSI]—a premium tactile paving solution from our advanced range of Tactile Ground Surface Indicators (TGSIs). Thoughtfully designed for both function and form, these tactile studs enhance accessibility while complementing the aesthetics of any public space.

Engineered for versatility, these studs are compatible with a wide variety of substrates, including stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, and metals. Whether your project involves heritage architecture or modern infrastructure, they offer seamless integration.

Installation is simple and secure, with two efficient options: drill and fit with adhesive or diamond core fitting with adhesive—both designed to provide a strong, long-lasting hold, even in high-traffic areas.

Built to the highest standards, our tactile studs comply with AS/NZS 1428.4.1:2009 (Australia) and the National Building Code 2016 (India), ensuring top-tier safety, durability, and peace of mind.

Choose the Stainless Steel Truncated Dome with Crosshatch Pattern [TWSI] for a perfect blend of reliability, elegance, and compliance. Reach out to us for custom sizes or special requirements—our team is here to tailor a solution that fits your project perfectly.
