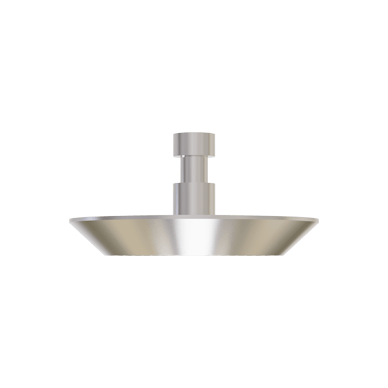

Stainless Steel Tactile Stud with Concentric Rings Pattern on Top and a Circular Center

Product Specification

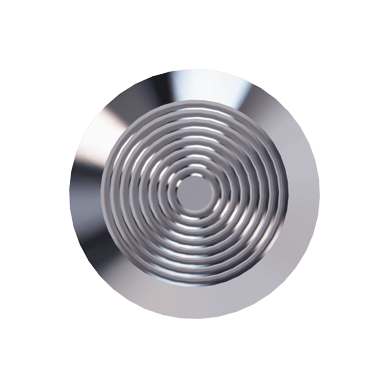

Top of Studs :

Concentric Rings with Circular Center

Suitable for Substrates :

Stone, masonry, timber, vinyl, vitrified porcelain, ceramics, glass, metals

Fixing :

Drill and fit with adhesive or diamond core and fit with adhesive

Special Options :

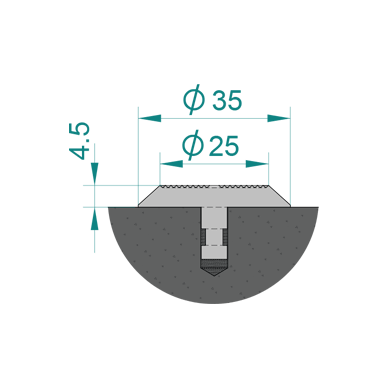

Customized sizes available on request, Thickness Can be availed
between 4.5 to 5mm as per request*

Australian Standards AS/NZS 1428.4.1:2009. | National Building Code 2016 (India)

5-Year Warranty

Introducing the Tactile Stud with Concentric Rings, a versatile and stylish solution for tactile ground surface indicators. Perfectly suited for various substrates including stone, masonry, and ceramics, this stainless steel stud ensures easy installation with options for adhesive or diamond core fitting.

Featuring a unique top design with concentric rings and a circular center, our tactile stud not only provides an essential navigation aid for the visually impaired but also adds an aesthetic touch to any space. With customizable size options and thicknesses between 4.5 to 5mm, we cater to diverse project needs.

Adhering to the Australian Standards AS/NZS 1428.4.1:2009 and the National Building Code 2016 (India), our Tactile Stud with Concentric Rings guarantees quality and safety. Contact Eminent Overseas for a tactile paving solution that combines functionality with design excellence.”
